The upgraded Base Camp X is ready for whatever comes next, with a touch of star quality. Visit all the locations you love the most, be it sand, gravel or off the beaten track thanks to superior suspension and a host of off-grid features as standard!
Features
The Supreme Base Camp X is a modern caravan packed with innovative, space-saving & travel-ready features.
Exterior
The exterior of the Base Camp X is built to conquer the road less-travelled. With a rugged off-road suspension, an aerodynamic body shape and a heavy-duty truss-chassis that includes a rise under the axle for clearance, this caravan is ready for sand, gravel and bush tracks alike.
The body is fully insulated, clad in double-ribbed aluminium or composite panels, and comes standard with a large payload capacity (over 1,000 kg in some cases), making it just as capable of hauling your bikes or gear as it is of carrying you and your crew in comfort.
Interior

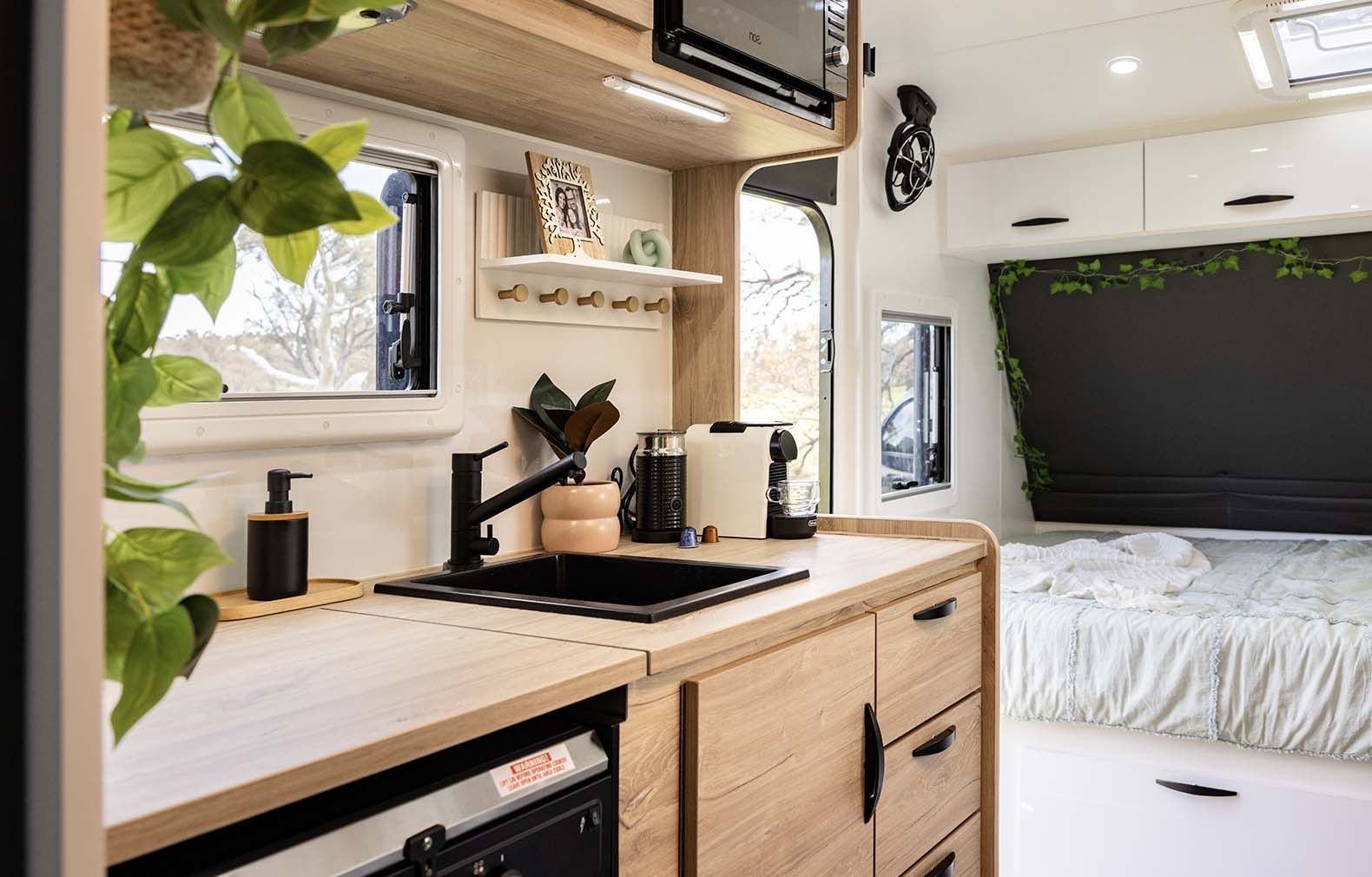

Inside, the Base Camp X delivers luxury and versatility in equal measure. The living quarters include a fully equipped kitchen (oven, cooktop, microwave), plush seating areas and smart use of space — from bunks and lounge convertibles to full ensuite bathrooms.
Off-grid features are built in from the ground up: a large-capacity lithium battery system paired with multiple solar panels ensures you can stay powered and comfortable whether you’re parked by a remote creek or under the stars.
Specifications
Interior
- Foot Rests: yes
- Pelmets: no
- Curtains: no
- Blind for door window: yes
- Door hinges: yes
- Handles: Positive lock handles
- Magazine Pockets: yes
- Wall Fans: yes
- Pressurising System: yes
- Furniture Ply: Lightweight 12mm furniture ply
- Upholstery: Option for fabric & leatherette
- Furniture: Interlocking tongue and groove furniture
- Table Leg: Adjustable table leg (layout dependent)
- Toilet: yes
- Shower: One-piece moulded shower
- Tapware & Sink: Standard Stainless Steel. Optional for Black or Gold Packages
- Basin: Ceramic ensuite basin
- Kitchen: Standard Kitchen fully integrated with drawers
- LED Reading Lights to Bedroom and Dinette: yes
- Foam: High density foam upholstery
- Robes: Bedside robes with bedside nooks
- Bed Frame: Lift up bed on struts with triple ply reinforced bed frame (Layout Dependent)
- Mattress: Innerspring mattress
Exterior
- Door: Camec Invictus triple lock main door with fly screen + Rear entry door panel
- Handle: LED grab handle
- Aluminium Step: Pull out aluminium double step with light
- Windows: Double glazed windows
- External Marine Grade Speakers: yes
- Roll Out Awning: yes
- Tunnel Boot: Full Front tunnel boot (layout dependent)
- Front Boot: no
- Boot Light: yes
- External Picnic Table: x 2
- External Entertainment Box: yes
- Slide-Out Kitchen: yes
- External BBQ Gas Bayonet: Yes 2x
- Offside LED Light: yes
- External LED Awning Lights: yes
- 240V & 12V Points: External 240V & 12V USB points
- External Shower: yes
- LED Light Bar: yes
- Power Hatch: 2x Power hatches (layout dependent)
- Roof Hatch: 2x Roof hatch
- Rear Mounted Bike Rack: yes
- LED Tail Light: yes
- Rear View Camera: yes
- Checker Plate: Front, Rear and Sides
- Legs: Universal drop down weight bearing stabilising legs
- Jerry Can Holder: Optional
Chassis
- Batteries:2x 300Ah Lithium
- Chassis: Truss Chassis
- Extended A-frame: Truss Chassis with 300 front extension
- Mesh Tray: Mesh on A-frame
- Suspension: Independent
- Bumper: 4-arm bumper for extra strength
- Spare Tyre: 1 x Spare tyre
- Axle Riser: yes
- Wheels: RKC Ammo Gold 16”
- Alloy Rims & Tyres: yes
- Anti-sway Controller: yes
- Coupling: yes
- Hitch: DO45 Hitch
- Jack: Caravan jack with fitted jacking points on chassis
- Electric Brakes: Electric brakes to all wheels with breakaway unit compatible to all state regulations
- Battery Pack: Big Trip Package

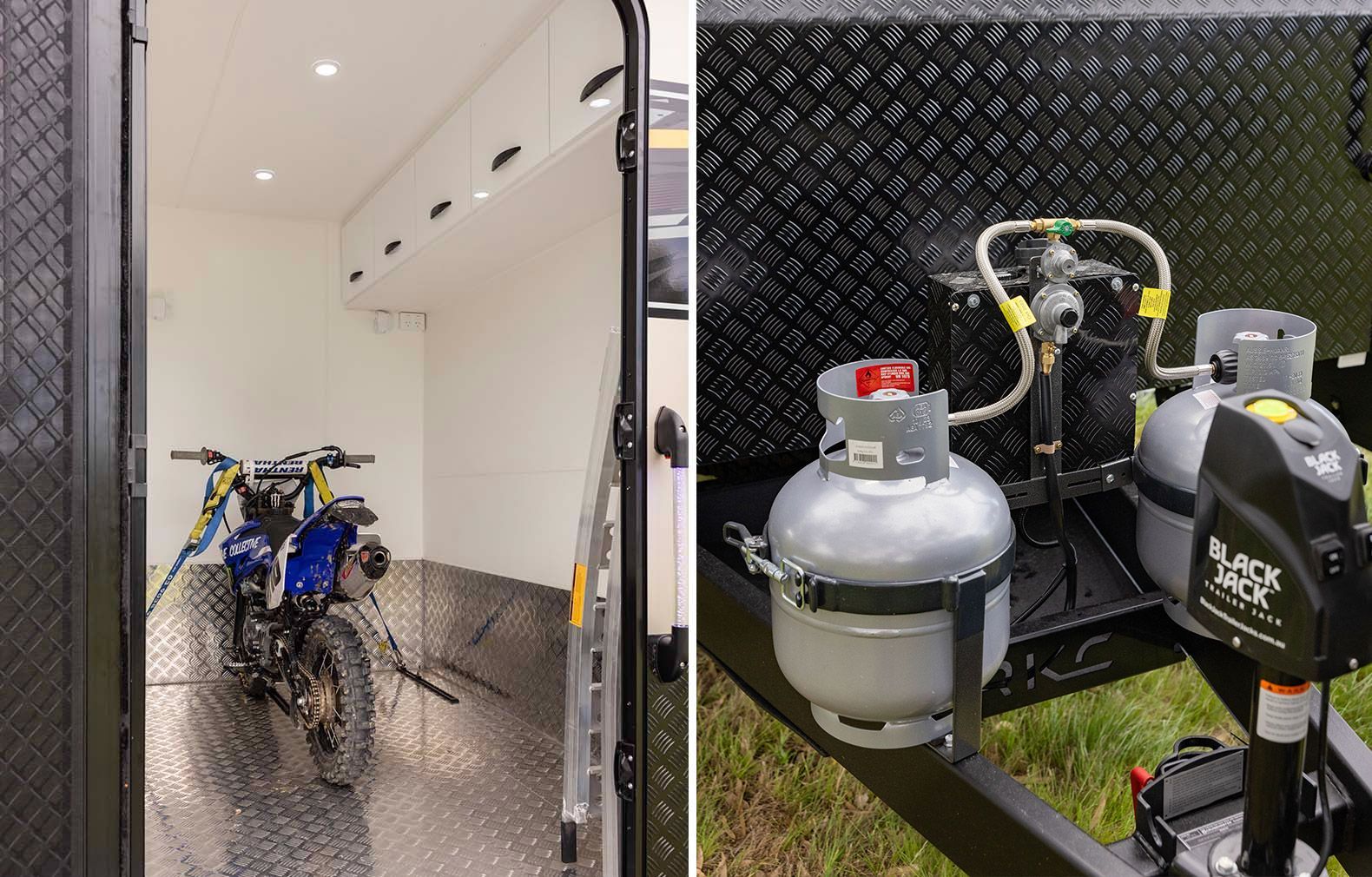

- Gas Bottle: 2 x Gas bottles
- Tap on A-Frame: Yes (protected)
- BBQ Gas Point: Yes 2x
- Aluminium Step: Pull out aluminium double step with light
- Grey Water Tank: 1 x Grey water tank with gauge
- Water Tank: 2 x Water tanks with separate fillers and water tank gauges
- Toolbox: Optional
Electrical
LED Internal Strip: Yes (with dimmer switches in Bedroom, Kitchen & Seating and Ensuite)
Anderson Plug: Anderson plug and 12 pin plugs for accelerated charging with 6mm wiring for optimum fridge operation on 12V
Batteries: 2x 300Ah Lithium
Solar Panel: 4 x Solar panels, roof mounted (layout dependent)
Solar Controller: Redarc RedVision TVMS MPPT
Solar & Battery Setup: Advanced
Connector: External mobile solar panel connector point
High Powered Charger: Redarc Alpha 50 BMS
External Power Points: yes
Double Power Point: Double power point to kitchen and ensuite
12V/USB Points: 12V/USB points to all bunks and bedroom robes, lounge
Power Points: 240V power points to kitchen, ensuite, bunks bedroom robes and under dinette
Inverter: Redarc 3,000W
Electric Breakaway System: yes
Water Tank Gauges: Incl in Redarc TVMS System
Internal Lights: yes
External Lights: yes
LED Light Bar: yes
Annexe Light: x 5
LED Downlights: yes
Door Light: LED Strip Light in Footwell
Roof Antenna: Cowfish VanTenna
Reversing Camera: yes
External TV Box: yes
Appliances
- H.W.S: Endless HWS GSWH-2
- Full Grill: yes
- Stove: yes
- Vented Range Hood: 12V flush mounted vented range hood with external venting
- Full Oven: No - Airfryer Combo Unit
- Microwave: yes
- Fridge: Dometic 188L Compressor Fridge/freezer with fridge fan and through roof flu venting for maximum ventilation
- A/C: Roof mount A/C with H/frame support
- Gas/Electric H.W.S: Endless HWS GSWH-2
- Diesel Heater: yes
- Wall Fans: yes
- Washing Machine: Yes (layout dependent)
- Swivelling Toilet: Ceramic swivelling toilet
- Water Tank Gauges: Incl in Redarc TVMS System
- 12V Water Pump: yes
- Marine Grade External Speakers: yes
- Audio/Radio: yes
- Audio: Fusion MS-RA60
- TV Antenna: Cowfish VanTenna
- TV Arm: Quick release TV arm
- High Powered Charger: High powered charger and transformer with 8mm wiring for maximum charge individually fused
*Specifications may be subject to change without notice at the discretion of Supreme Caravans. Floorplans & images are for illustrative purposes only.
