Welcome to the future of travel with our revolutionary Eclipse Sunray caravan, featuring a one-piece roof and sandwich panel construction. Designed to provide you with the utmost comfort, durability, and style, this caravan is your gateway to unforgettable adventures. Join us as we unveil the exceptional features of this remarkable caravan.
Features
The Supreme Eclipse Sunray is a modern caravan packed with innovative, space-saving & travel-ready features.
Exterior

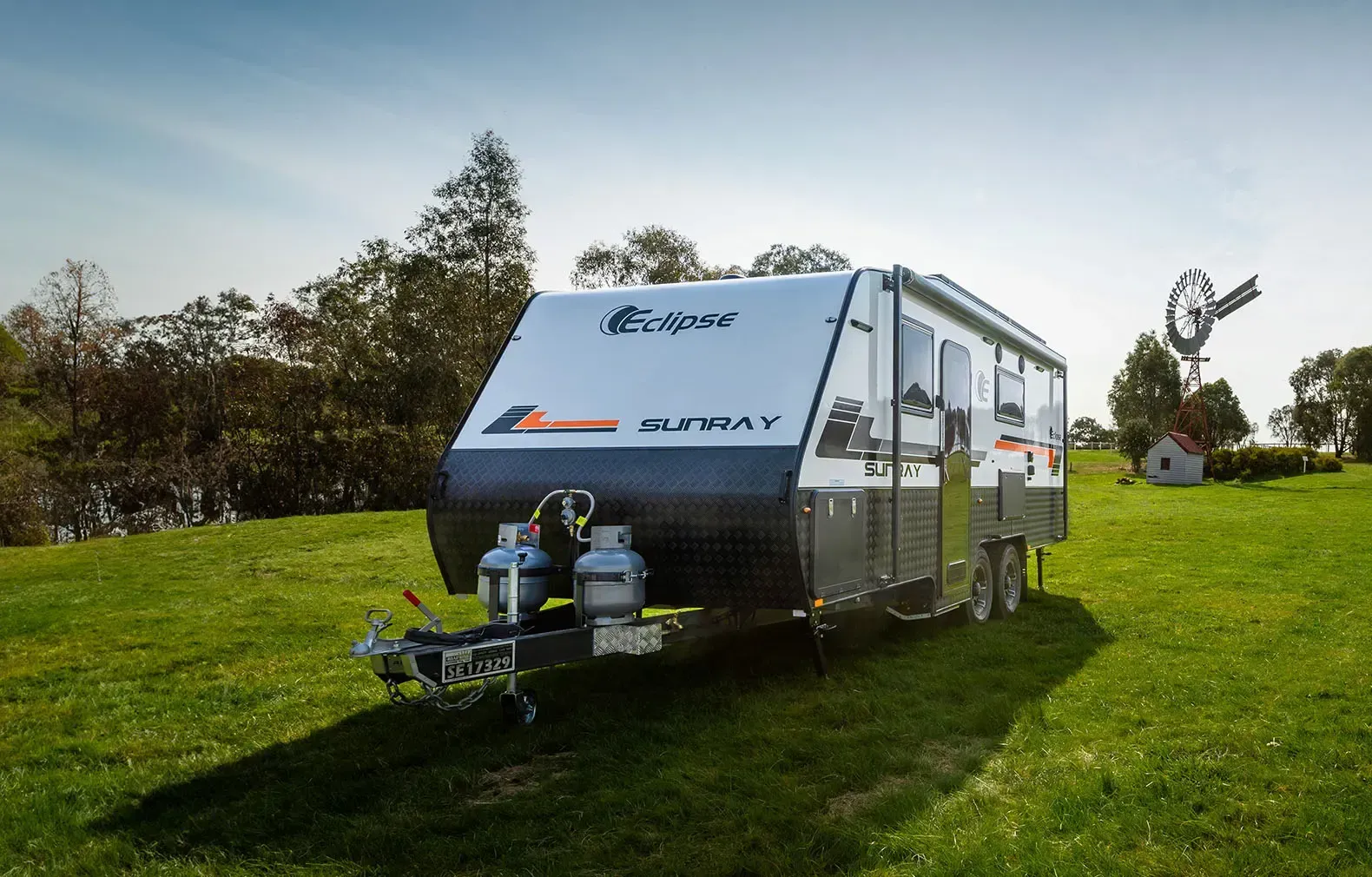

The Eclipse Sunray’s outer structure brings together durability and precision engineering: a one-piece roof that drastically reduces leaks and elevates structural strength, combined with sandwich-panel wall construction that delivers superior insulation and climate performance.
On the foundation, a robust Australian steel chassis with large-section rails supports high-quality suspension, alloy wheels, full water and grey-water tanks, dual gas bottles and large solar/lithium battery capability — all tailored for modern touring.
Interior

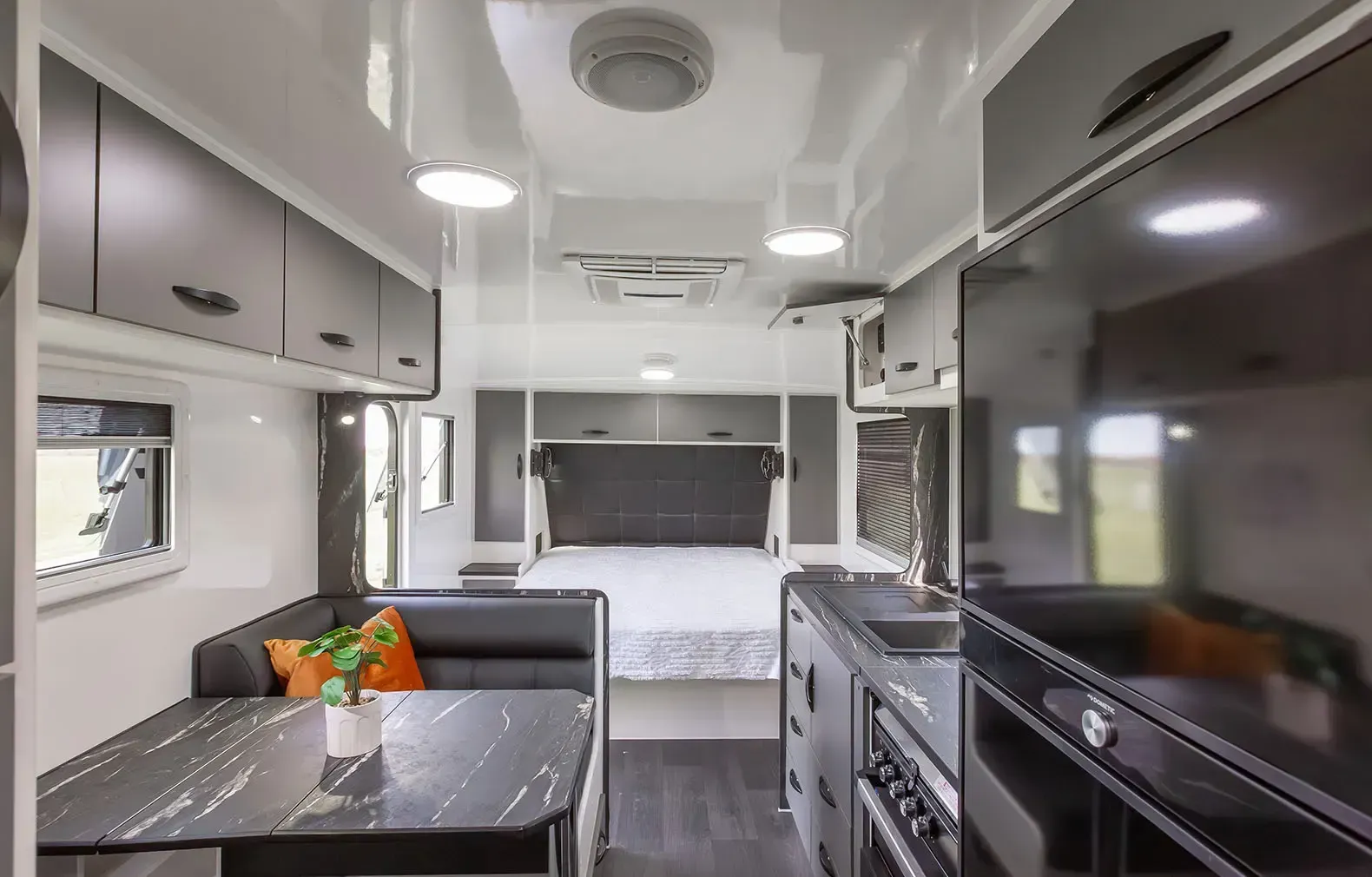

Inside, the Eclipse Sunray excels with a spacious open-plan layout designed for comfort, practical living and modern convenience. Standard features include a 3-gas/1-electric burner cooktop with grill, microwave, a tropical-rated two-door refrigerator, full ensuite bathroom, roof-mounted air-conditioner, dimmable LED lighting throughout, lift-up bed storage, and a premium Lithium battery + battery-management system for true off-grid capability.
Furnishings use lightweight plywood, high-grade upholstery, hidden handles and quality finishes for a luxury feel that complements the functional build.
Specifications
Interior
- Foot Rests: Optional
- Pelmets: no
- Curtains: no
- Blind for door window: yes
- Door hinges: yes
- Handles: Positive lock handles
- Magazine Pockets: yes
- Wall Fans: yes
- Pressurising System: no
- Furniture Ply: Lightweight 15mm furniture ply
- Upholstery: Option for fabric & leatherette
- Furniture: Interlocking tongue and groove furniture
- Table Leg: Adjustable table leg (layout dependent)
- Toilet: yes
- Shower: One-piece moulded shower
- Tapware & Sink: Standard Stainless Steel. Optional for Black or Gold Packages
- Basin: Ceramic ensuite basin
- Kitchen: Standard Kitchen fully integrated with drawers
- LED Reading Lights to Bedroom and Dinette: yes
- Foam: High density foam upholstery
- Robes: Bedside robes with bedside nooks
- Bed Frame: Lift up bed on struts with triple ply reinforced bed frame (layout dependent)
- Mattress: Innerspring mattress
Exterior
- Door: Triple lock main door with fly screen
- Handle: LED grab handle
- Aluminium Step: Pull out aluminium step with light
- Windows: Double glazed windows
- External Marine Grade Speakers: yes
- Roll Out Awning: yes
- Tunnel Boot: Full Front tunnel boot (layout dependent)
- Front Boot: no
- Boot Light: yes
- External Picnic Table: yes
- External Entertainment Box: yes
- Slide-Out Kitchen: Optional
- External BBQ Gas Bayonet: yes
- Offside LED Light: yes
- External LED Awning Lights: yes
- 240V & 12V Points: External 240V & 12V USB points
- External Shower: yes
- LED Light Bar: no
- Power Hatch: 2x Power hatches (layout dependent)
- Roof Hatch: yes
- Rear Mounted Bike Rack: no
- LED Tail Light: yes
- Rear View Camera: yes
- Checker Plate: Front, Rear and Sides
- Legs: Drop down weight bearing stabilising legs
- Jerry Can Holder: Optional
Chassis
- Batteries: 1x 200Ah Lithium
- Chassis: 6-inch box section chassis rail
- Extended A-frame: A-frame 6-inch box section
- Mesh Tray: Mesh on A-frame
- Suspension: Load sharing suspension (layout dependent)
- Bumper: 2-Arm Bumper
- Spare Tyre: 1 x Spare tyre
- Axle Riser: Layout dependent
- Wheels: Austin 15”
- Alloy Rims & Tyres: yes
- Anti-sway Controller: Optional
- Coupling: yes
- Hitch: 50mm Hitch
- Jack: Caravan jack with fitted jacking points on chassis
- Electric Brakes: Electric brakes to all wheels with breakaway unit compatible to all state regulations
- Battery Pack: Optional
- Gas Bottle: 2 x Gas bottles
- Tap on A-Frame: Yes (protected)
- BBQ Gas Point: yes
- Aluminium Step: Pull out aluminium step with light
- Grey Water Tank: 1 x Grey water tank with gauge
- Water Tank: 2 x Water tanks with separate fillers and water tank gauges
- Toolbox: Optional
Electrical
- LED Internal Strip: Yes (with dimmer switches in Bedroom, Kitchen & Seating and Ensuite)
- Anderson Plug: Anderson plug and 12 pin plugs for accelerated charging with 6mm wiring for optimum fridge operation on 12V
- Batteries: 1x 200Ah Lithium
- Solar Panel: 2 x Solar panels, roof mounted
- Solar Controller: RedArc Manager 30 and RedVision Display Screen
- Solar & Battery Setup: Advanced
- Connector: External mobile solar panel connector point
- High Powered Charger: Redarc Manager 30 with in-built DC/DC Charger
- External Power Points: yes
- Double Power Point: Double power point to kitchen and ensuite
- 12V/USB Points: 12V/USB points to all bunks and bedroom robes, lounge
- Power Points: 240V power points to kitchen, ensuite, bunks bedroom robes and under dinette
- Inverter: Optional
- Electric Breakaway System: yes
- Water Tank Gauges: LED water tank gauges
- Internal Lights: yes
- External Lights: yes
- LED Light Bar: no
- Annexe Light: x 3
- LED Downlights: no
- Door Light: LED Strip Light in Footwell
- Roof Antenna: Cowfish VanTenna
- Reversing Camera: yes
- External TV Box: yes
Appliances
- H.W.S: Instant
- Full Grill: yes
- Stove: yes
- Vented Range Hood: 12V flush mounted vented range hood with external venting
- Full Oven: no
- Microwave: yes
- Fridge: Dometic 188L Compressor Fridge/Freezer
- A/C: Roof mount A/C with H/frame support
- Diesel Heater: Optional
- Wall Fans: yes
- Washing Machine: Yes (layout dependent)
- Swivelling Toilet: Ceramic swivelling toilet
- Water Tank Gauges: LED water tank gauges
- 12V Water Pump: yes
- Marine Grade External Speakers: yes
- Audio/Radio: yes
- Audio: Fusion MS-RA60
- TV Antenna: Cowfish VanTenna
- TV Arm: Quick release TV arm
- High Powered Charger: High powered charger and transformer with 8mm wiring for maximum charge individually fused
*Specifications may be subject to change without notice at the discretion of Supreme Caravans. Floorplans & images are for illustrative purposes only.
