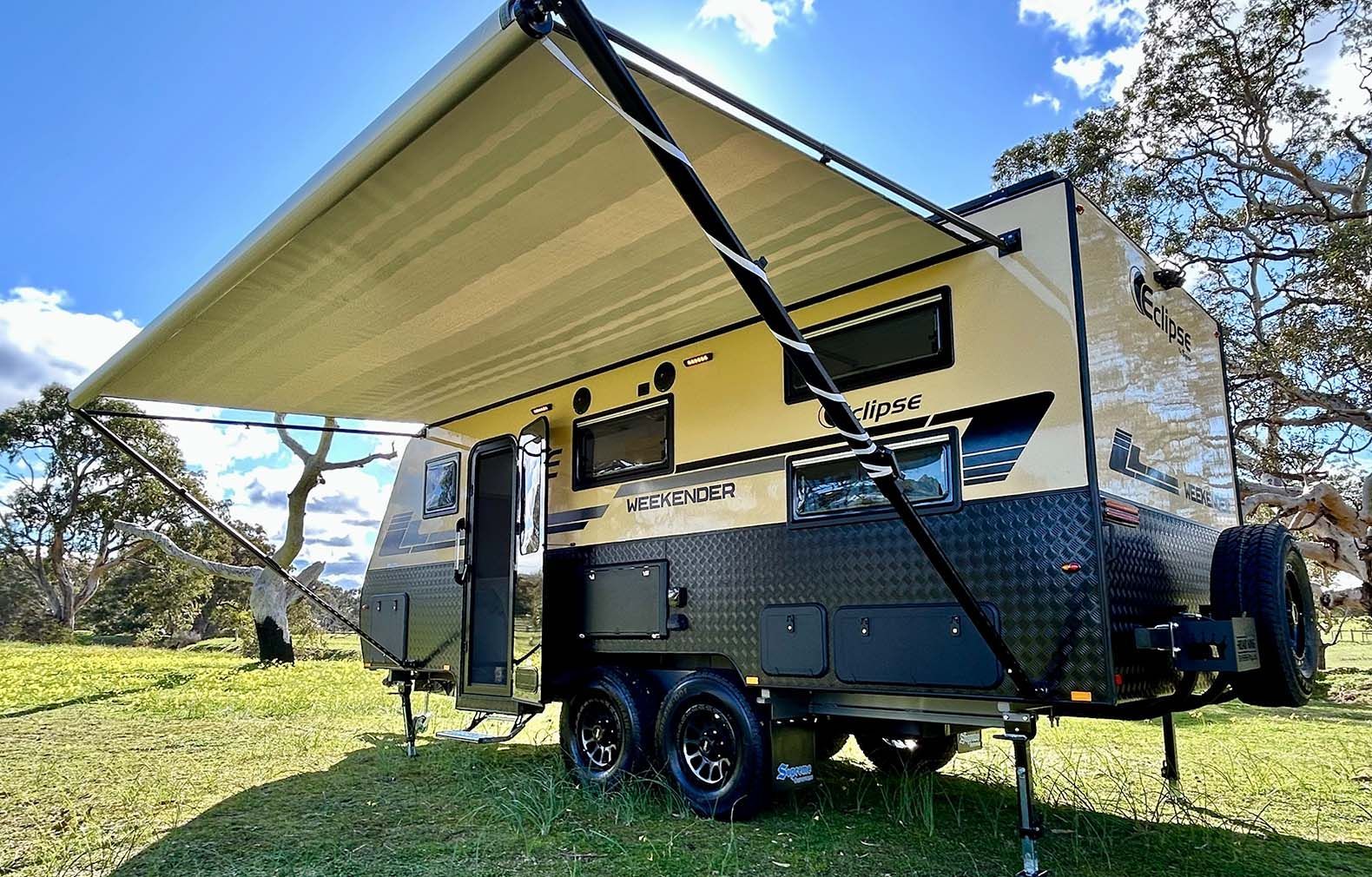

With the success of the one-piece roof and sandwich panel construction for our Eclipse Sunray comes a new caravan that has ‘family’ and ‘off-roading’ written all over it. The Eclipse Weekender is the perfect dirt roader for any family that wants to travel in comfort while going places.
Features
The Supreme Eclipse Weekender is a modern caravan packed with innovative, space-saving & travel-ready features.
Exterior
The Eclipse Weekender features a heavy-duty six-inch Permagal Australian steel chassis paired with the Cruisemaster CRS2 3300 kg tandem axle suspension, designed to handle rough tracks and family touring with ease.
Its exterior body-construction uses a one-piece roof and vacuum-formed sandwich panel walls (29 mm thick) for superior insulation and durability, and it comes standard with tech-forward extras such as a large lithium battery bank, solar panels, dual external speakers, roll-out awning, external TV box, and hot-and-cold outdoor shower for full outdoor living.
Interior
Inside, the Weekender delivers a spacious family layout with premium appliances and comfort at its core: you’ll find a 3-gas/1-electric burner cooktop with grill, microwave, compressor fridge (≈ 188 L), full ensuite bathroom, roof-mounted air conditioner, lift-up under-bed storage and multiple 240 V/12 V/USB power points throughout.
The interior walls are constructed from fibreglass sandwich panels (29 mm thick), providing excellent insulation, and the lounge/dining zone features generous seating, LED strip lighting, and quality finishes that make it feel like a home on wheels designed for both comfort and off-grid capability.
Specifications
Interior
- Foot Rests: Optional
- Pelmets: no
- Curtains: no
- Blind for door window: yes
- Door hinges: yes
- Handles: Positive lock handles
- Magazine Pockets: yes
- Wall Fans: yes
- Pressurising System: Optional
- Furniture Ply: Lightweight 15mm furniture ply
- Upholstery: Option for fabric & leatherette
- Furniture: Interlocking tongue and groove furniture
- Table Leg: Adjustable table leg (layout dependent)
- Toilet: yes

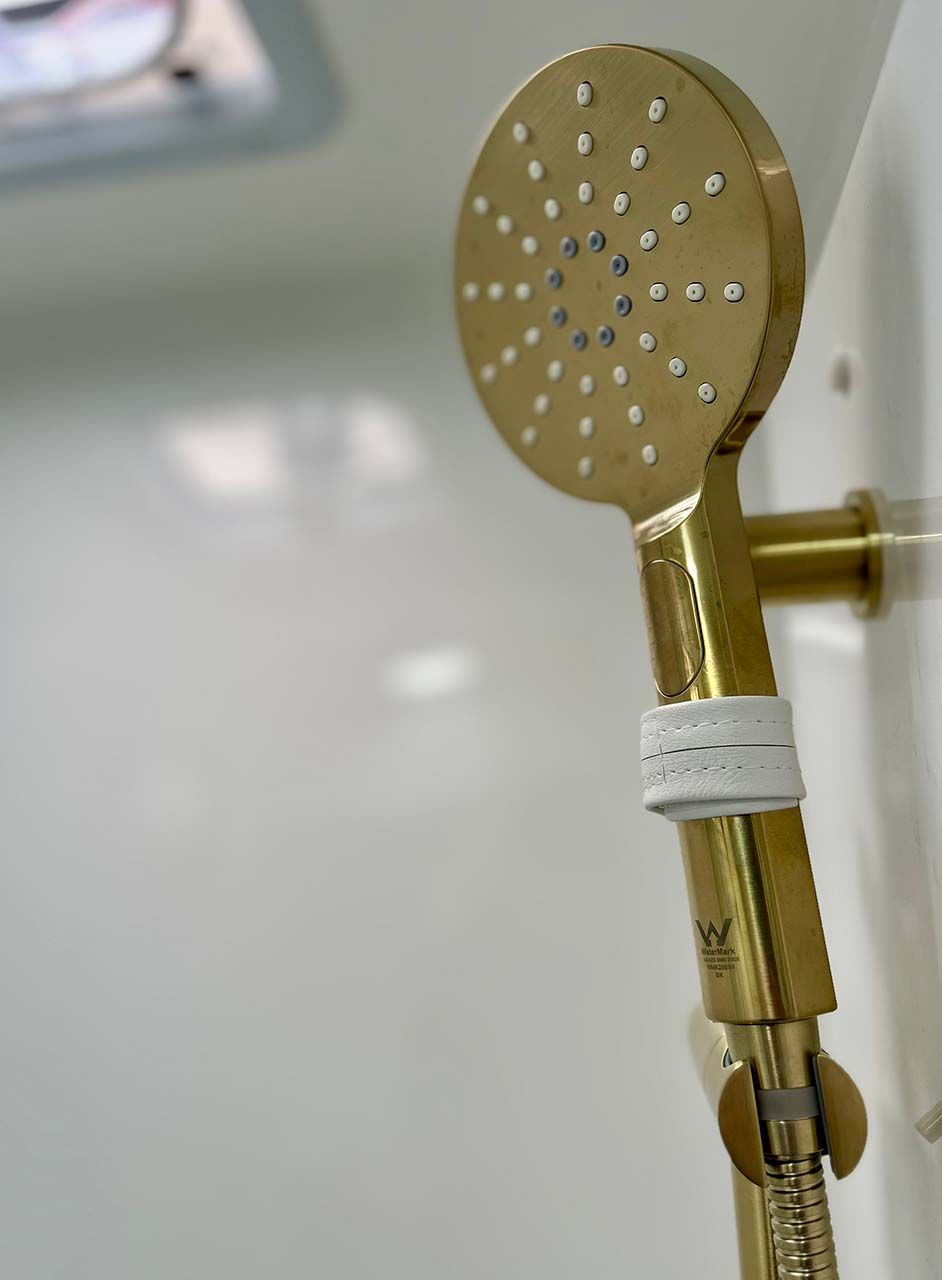

- Shower: One-piece molded shower
- Tapware & Sink: Standard Stainless Steel. Or Black or Gold Packages
- Basin: Ceramic ensuite basin
- Kitchen: Standard Kitchen fully integrated with drawers
- LED Reading Lights to Bedroom and Dinette: yes
- Foam: High density foam upholstery
- Robes: Bedside robes with bedside nooks
- Bed Frame: Lift up bed on struts with triple ply reinforced bed frame (Layout Dependent)
- Mattress: Innerspring mattress
Exterior
- Door: Triple lock main door with fly screen
- Handle: LED grab handle
- Aluminium Step: Pull out aluminium step with light
- Windows: Double glazed windows
- External Marine Grade Speakers: yes
- Roll Out Awning: yes
- Tunnel Boot: Full front tunnel boot (layout dependent)
- Front Boot: no
- Boot Light: yes
- External Picnic Table: yes
- External Entertainment Box: yes
- Slide-Out Kitchen: Optional
- External BBQ Gas Bayonet: yes
- Offside LED Light: yes
- External LED Awning Lights: yes
- 240V & 12V Points: External 240V & 12V USB points
- External Shower: yes
- LED Light Bar: Optional
- Power Hatch: 1x Power hatch
- Roof Hatch: Optional
- Rear Mounted Bike Rack: no
- LED Tail Light: yes
- Rear View Camera: yes
- Checker Plate: Front, Rear and Sides
- Legs: Drop down stabilising legs
- Jerry Can Holder: Optional
Chassis
- Batteries: 1x 300Ah Lithium
- Chassis: 6-inch box section chassis rail
- Extended A-frame: A-frame 6-inch box section
- Mesh Tray: Mesh on A-frame
- Suspension: Cruisemaster CRS2 3300kg Tandem Axle Suspension
- Bumper: 3-arm bumper
- Spare Tyre: 1x Spare tyre
- Axle Riser: yes
- Wheels: RKC Ammo 16”
- Alloy Rims & Tyres: yes
- Anti-sway Controller: Optional
- Hitch: Do-35 Hitch
- Jack: Caravan jack with fitted jacking points on chassis
- Electric Brakes: Electric brakes to all wheels with breakaway unit compatible to all state regulations
- Gas Bottle: 2x gas bottles
- Tap on A-Frame: Yes (protected)
- BBQ Gas Point: yes
- Aluminium Step: Pull out aluminium step with light
- Grey Water Tank: 1x Grey water tank with gauge
- Water Tank: 2x Water tanks with separate fillers and water tank gauges
- Toolbox: yes
Electrical
- LED Internal Strip: Yes (with dimmer switch)
- Anderson Plug: Anderson plug and 12 pin plugs for accelerated charging with 6mm wiring for optimum fridge operation on 12V
- Batteries: 1x 300Ah Lithium
- Solar Panel: 3x Solar panels, roof mounted
- Solar Controller: Redarc Manager 30 and RedVision Display Screen
- Solar & Battery Setup: Advanced
- Connector: External mobile solar panel connector point
- High Powered Charger: Redarc Manager 30 with in-built DC/DC Charger
- External Power Points: yes
- Double Power Point: Double power point to kitchen and ensuite
- 12V/USB Points: 12V/USB points to all bunks and bedroom robes, lounge
- Power Points: 240V power points to kitchen, ensuite, bunks bedroom robes and under dinette
- Inverter: Redarc 3,000W wired to all GPO's and A/C
- Electric Breakaway System: yes
- Water Tank Gauges: LCD Multi Display WT G
- Internal Lights: yes
- External Lights: yes
- LED Light Bar: Optional
- Annexe Light: 5
- LED Downlights: no
- Door Light: LED Strip Light in Footwell
- Roof Antenna: Cowfish Vantenna
- Reversing Camera: yes
- External TV Box: yes
Appliances
- H.W.S: Endless HWS GSWH-2
- Full Grill: yes
- Stove: yes
- Vented Range Hood: 12V flush mounted vented range hood with external venting
- Full Oven: no
- Microwave: yes
- Fridge: Dometic 180L Compressor Fridge/Freezer
- A/C: Roof mount A/C with H/frame support
- Diesel Heater: Optional
- Wall Fans: yes
- Washing Machine: yes
- Swivelling Toilet: Ceramic swivelling toilet
- Water Tank Gauges: LCD Multi Display WT G
- 12V Water Pump: yes
- Marine Grade External Speakers: yes
- Audio/Radio: yes
- Audio: Fusion MS-RA60
- TV Antenna: Cowfish Vantenna
- TV Arm: Quick release TV arm
*Specifications may be subject to change without notice at the discretion of Supreme Caravans. Floorplans & images are for illustrative purposes only.
